Itomic Industrial Use " Eco Cute " Hot Water Boiler

Features


EI-N5 : Instantaneous electric water heater.


Highly efficient CO2 heat pump water boiler .

Dreamtech Industrial use Eco-cute introduces CO2 Heat pump system which utilizes heat from the air and produces heat energy to make hot water. 1electrical energy can produce 3.8 heating energy.(*COP= 4 ) Its high efficiency leads to lower running cost and being eco-friendly.

*COP (Coefficient of Performance) is the ratio of heat delivered by the heat pump and the electricity supplied to the compressor. The bigger the figure, the better the efficiency.

d

Eco-friendly and the best and quickest way to reduce CO2 emissions.

Ozone Depleting coefficient is 0. Global Warming Potential is 1/1700 of Freon refrigerant.

Stopping the Global Warming is one of our top priorities. Itomic Eco-cute uses naturally abundant CO2(R744) as refrigerant, so "Ozone Depleting Coefficient is 0, Global Warming Potential is 0" is realized. CO2 refrigerant is not combustible nor toxic, which makes our Eco-cute next generation type water heater.

d

RefrigerantODPGWPNecessity of collection
CFC Refrigerant R1218,500Yes
HCF Refrigerant R220.0551,700
HCF Refrigerant R2201,700
HFC Refrigerant R134A01,300
Natural Refrigerant R744¡]CO2¡^01No

These values are based on our estimation.

ODP=Ozone Depletion Potential,

GWP=Global Warming Potential.

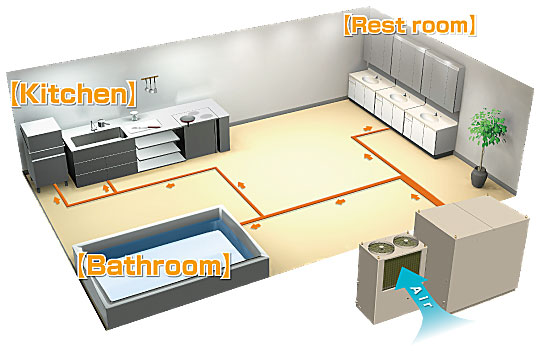

Workflow Diagram

workflow

Suitable usage condition

Deamtech Industrial use Eco-cute hot water boiler is ideal for facilities where heavy volume of hot water is used on a constant base. Facilities such as...

Itomic's Eco-cute sales record

  • Hotels
  • Resturants
  • Sports facilities
  • Shower rooms
  • Nursery homes
  • Hospitals
  • Schools / Dormitory
  • Retail shops



Retail shopHospitals/Nursary homesHot springsHotels

Specification

    • Suitable usage : Washing, shower, bath.
    • Set up temperature : 60¢XC - 90¢XC
    • Place to set : Stand
    • Structure : Concealed (Pressurized)
    • Type : Stroage type
    • Storage capacity(Liter) : 3,000(Standard Specification, Option:2,500/2,000/1,500/1,000/500)
    • Refrigerant : R744(CO2)
    • Dimensions(mm) : .W1,312*D842*H1,814(Heat Pump unit) / W2,310*D1,560*H2,175(3,000Ltr Storage tank)
    • Voltage : 3 phase 200V
    • Specification change : Yes
